E001SS55X thermal conductivity silicone grease
E001SS55X Silicone Thermal Conductive Grease
Product description
E001SS55X series single component thermal conductive silicone grease is used as a thermal conductive material in electronic devices, with excellent thermal conductivity. The E001SS55X series products have low viscosity, which allows for close contact between the surface of electronic components that need to be cooled and the heat sink, reducing thermal resistance. This can quickly and effectively lower the temperature of electronic components, thereby extending their service life and improving their reliability. E001SS55X series single component thermal conductive silicone grease does not crosslink, so this product is easy to operate in case of changes or replacement of the heat sink during electronic assembly.
Features
This series of products not only has high thermal conductivity, but also does not generate stress during use. It has high stability at -50 to+250 ℃ and excellent weather resistance, radiation resistance, and dielectric properties.
This series of products is widely used in LED, microprocessor, and memory modules
Blocks, cache memory, sealed integrated chips, DC/DC converters
Inverters, IGBTs and other power modules, power semiconductors, solid-state relays
In the fields of electrical appliances and bridge rectifiers.
Thermal conductivity: 1.2-3.5W/m.K
Low settlement, stored at room temperature
Superior high and low temperature resistance, excellent weather and radiation resistance
Radiation and superior dielectric properties
Superior chemical and mechanical stability
Typical application
Power Module
Integrated chip
Power module
Automotive electronic products
Telecommunications equipment
Computers and their accessories
Main technical parameters
Item | Standard | 12 | 15 | 25 | 30 | 35 |
Color | Visual | White, Liquid | ||||
Viscosity (mPas) | G B/T2794-2013 | Semi Liguid | Semi Liguid | Paste | Paste | Paste |
Thermal Conductivity | ASTM D5470 | 1.2 | 1.5 | 2.5 | 3.0 | 3.5 |
Specific gravity (g/cm3) | ASTM D792 | 2.35 | 2.75 | 3 | 3.1 | 3.1 |
Solid content (%) | HD/T2502-1993 | ＞99 | ＞99 | ＞99 | ＞99 | ＞99 |
Oil viscosity (%) | HD/T2502-1993 | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 |
Dielectric constant (MHz)) | ASTM D150 | 3.4 | 3.4 | 4.4 | 4.8 | 4.0 |
Volume resistance (Ω∙ cm) ° C | ASTM D257 | ≥2x10 14 | ≥2x10 14 | ≥2x10 13 | ≥2x10 13 | ≥2x10 12 |
Applicable temperature range (C) | / | -60-200°C | -60-250°C |
Operation process

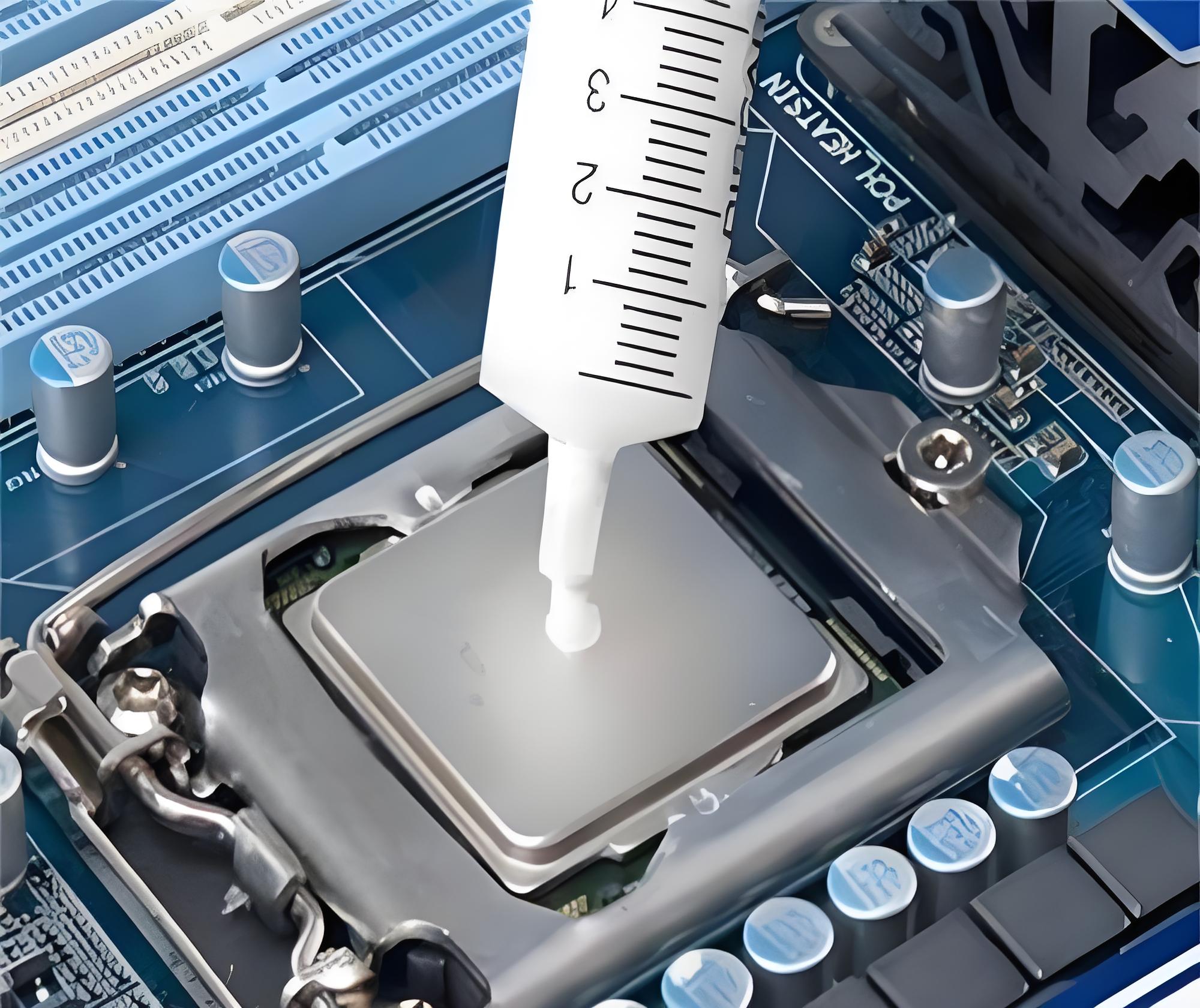

Clean the surface of the second coated component, extrude a sufficient amount of single component thermal conductive silicone grease onto the surface of the device through a syringe, and then apply slight pressure to the second surface for bonding.
If there is any extruded silicone grease, it can be wiped clean with a cloth. Each use should be sealed for future use.
Or use screen printing machines for construction operations.
Packing specifications
E001SS5512, ordering code: 1KSI6150
300ML/pcs, 1KG/ can, 10kg/Drum
E001SS5515, ordering code: 1KSI6110
300ML/pcs, 1KG/ can, 10kg/Drum
E001SS5525, ordering code: 1KSI6010
1KG/ can, 10kg/Drum
E001SS5530, ordering code: 1KSI8010
1KG/ can, 10kg/Drum
E001SS5535, ordering code: 1KGR6190
1KG/ can, 10kg/Drum
Storage and transportation
This product sealed storage, recommended storage temperature of 5~25℃ cool dry place; The storage period at room temperature is 24 months
If there is settling after more than 12 months, it can be stirred evenly and can still be used.
